Firefly: Images

Firefly can load images as well as support extensive interacting with images. This chapter covers loading images; visualization tools are covered in another chapter. Firefly can load images that are FITS

and HiPS

formats. Any catalogs you have loaded are overlaid on the images; see visualization chapter for more information.

Contents of page/chapter:
+Searching for and Loading Images
+Making 3-color Images
+HiPS Images: General Information
+Searching for HiPS Images
+Adding New Images
+Coverage Image
+Upper Left HiPS menus

Searching for and Loading Images

When you first start Firefly, depending on how you get into it, an image may be pre-loaded. If the image is pre-loaded, you can start manipulating the image right away; see the Visualization section.

If the first screen you come to is an empty results page, then you need to decide what to load. To search for images, click on "images" at the top to begin an image search:

If you do not have an image pre-loaded, the default start position is in the position search for images. It is assuming by default that you want to load a FITS image from IRSA services, though you can also load a FITS image from disk or off another service on the web (see below). (Flexible image transport system, FITS , files are widely used in astronomy and are an easy way to store images.)

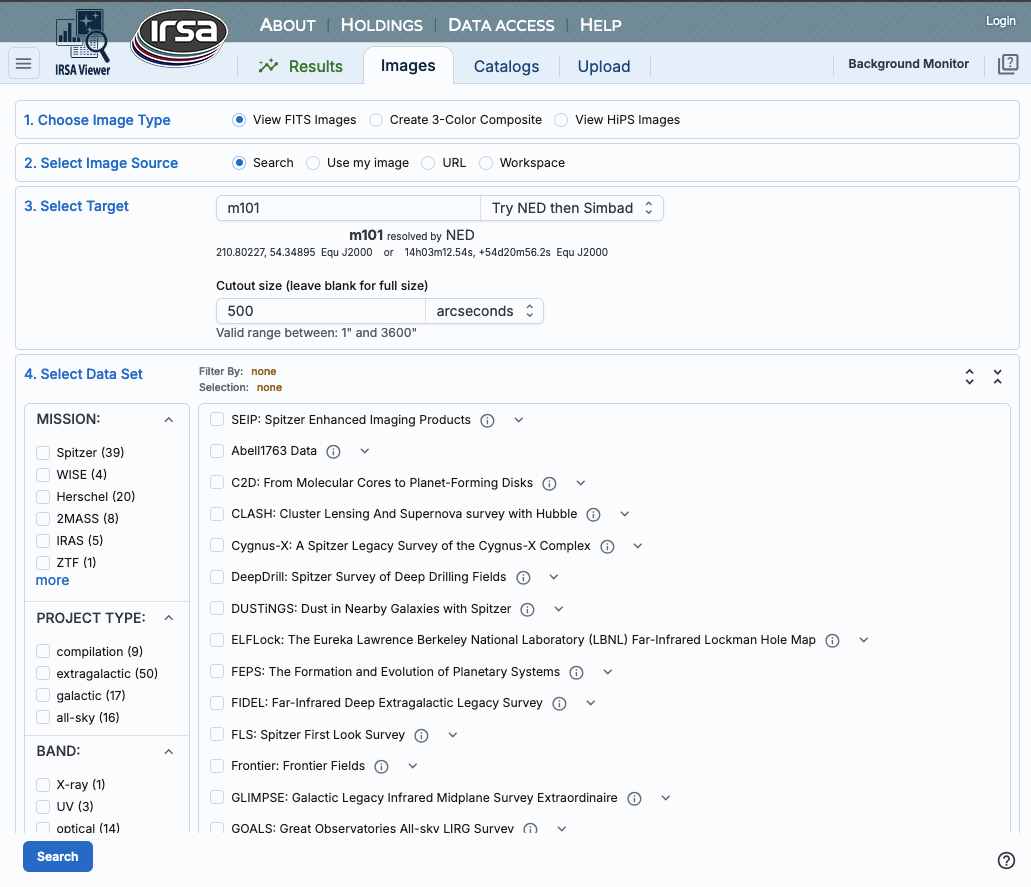

The search window looks like this:

1. Choose Image Type

First, you select which images you want to load: FITS images (individually), FITS images that you load into a new three-color image (more on 3-color images below), or HiPS images

(more on HiPS below; also see IVOA docs

for more about what HiPS images are).

2. Select Image Source

Second, you select whether you want to pull an image from IRSA's archives ("Search"; see below), your own disk ("Use my image"), elsewhere on the web ("URL"), or the IRSA Workspace

("Workspace"). Note that to use the Workspace (reading from or writing to it), you'll need to log in.

In the cases other than "Search", nearly all of the additional options below this line vanish because they are no longer relevant. To select an image off of your local disk, select "Use my image", and then tell it where to find the image on your local disk. To load an image from the web, pick the "URL" option and enter the URL from which you want an image loaded. To load an image from the IRSA Workspace, pick the "Workspace" option and find the file you want to load.

If you would like to load an image from IRSA's archives, select "Search" and go on to these subsequent additional search parameters.

3. Select Target

Third, you select a target. You may enter a target name, and have either NED-then-Simbad or Simbad-then-NED resolve the target name into coordinates. Alternatively, you may enter coordinates directly. These coordinates can be in decimal degrees or in hh:mm:ss dd:mm:ss format, or Jhhmmss+ddmmss format. By default, it assumes you are working in J2000 coordinates; you can also specify galactic, ecliptic, or B1950 coordinates as follows:

'46.53, -0.251 gal' means 46.53, -0.251 degrees in galactic coordinates
'12.7, +4.3 ecl' means 12.7, +4.3 degrees in ecliptic coordinates
'19h17m 11d58m b1950' means 19h17m 11d58m in B1950 coordinates
a source name like 'J140320.67+542028.6' is parsed as 14h03m20.67s +54d20m28.6s.
a source name like 'G102.0360+59.7715' is parsed as 102.0360 +59.7715 in galactic coordinates

Examples are given below the text entry box before you start typing in the box.

As you are completing a valid coordinate entry, it echoes back to you what it thinks you are entering. Look just below the box in which you are typing the coordinates to see it dynamically change.

Below the box where you enter the target, you can then specify the size of the images you want. You may enter the cutout size in arcseconds, arcminutes, or degrees; just change the drop-down option accordingly.

⚠ Tips and Troubleshooting

Pick your units from the drop-down first, and then enter a number; if you enter a number and then select from the drop-down, it will convert your number from the old units to the new units.
There are both upper and lower limits to your search size; it will tell you if you request something too big or too small. Note that these limits may be image-dependent; larger images may be available from certain surveys and smaller images may be available from other surveys.
If you want the whole image tile, just leave the image size blank, then the closest image tile in its entirety will be returned.

4. Select Data Set

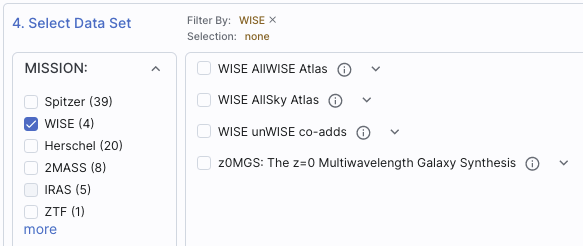

Fourth, you select the data set. There are myriad choices, which you can filter in various ways to allow you to find what you need. Statistically, any one spot on the sky will only be found in a few of these data sets, so it makes sense to weed down the list, at least a little bit.

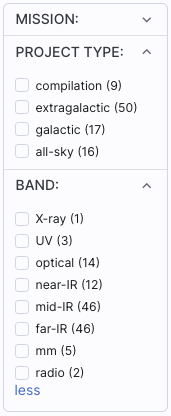

On the left hand side, you can filter by :

Mission (or survey): Spitzer, WISE, Herschel, 2MASS, IRAS, ZTF, PTF, AKARI, DSS, SDSS, MSX, COSMOS, MUSYC, BLAST, IRTS, BOLOCAM.
Project Type: Compilation (meaning, e.g., all the data available from a mission that was not an all-sky survey), extragalactic, galactic, all-sky.
Band: X-ray, UV, optical, near-IR, mid-IR, far-IR, mm, radio. (Yes, you can find data from non-IR missions/surveys here, depending on what projects have delivered back to IRSA.)

The number in parentheses after each type is the number of data sets in that category.

To expand or contract the options below each of these broad categories, click on the black arrow on the right. To see all of the choices in each of these broad categories, click on the black arrow and then click "more" near the bottom of the list (after which you can click "less" to collapse it again). In this example, "Mission" is collapsed, "Project Type" is expanded, and "Band" is fully extended to reveal more options than are shown by default:

To select any of the options, click on the checkbox on the left. In response to your selections, two things happen. (1) checked items appear in highlights above this part of the page, next to "Filter By"; (2) the list of programs for selection on the right hand side changes. Here is an example where the list has been filtered down to just include WISE data:

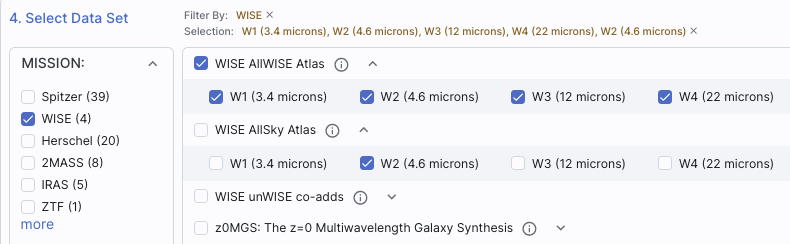

On the right hand side, you can select individual surveys and individual bands therein. To expand or contract the options below each of the categories, click on the black arrow on the right, next to the data set name. To select any of the waveband options, click on the checkbox on the left of the individual survey or individual bands. Here is an example showing all of the WISE/AllWISE data selected (via the tickbox next to "WISE AllWISE"), and just W2 from WISE/AllSky selected (via the tickbox next to "W2" in the expanded section under "WISE AllSky"). Note the "Selection" indication at the top.

To find out more information about any given data set, click on the i in the circle . This takes you to a master list of all data sets available, from which you can obtain standard information about the data sets (mission, wavelengths, links to more information about the program or delivery, and more).

Search!

To actually initiate the search as specified, choose the "Search" button in the lower left.

⚠ Tips and Troubleshooting

You don't have to select something on the left side before selecting something on the right side. If you know exactly what you want, just jump in and select things on the right and click "search."
If you select something on the left side, it will limit your choices accordingly on the right side.
If you clear filters on the left side, it doesn't affect selections you've already made on the right. You must actually clear all the selections on the right to reset everything. The most efficient way to do this is by clicking the 'x' next to the selection summary at the top of this portion of the window -- the 'x' at the end of the "Filter By" line clears the filters on the left, and the 'x' at the end of the "Selection" line clears the selections.
If you want to expand all the choices on the right (to ease in band selection), click on the sets of arrows in the upper right of this part of the screen to show all options, or collapse them again.
If you go back to add new images of the same target, be sure to uncheck the images you had previously selected, otherwise you will load in second copies of those images.
To remove an image you have already loaded (or an error message from a data set that had no data covering your target), click on the small blue "x" in the upper right of the corresponding image tile.
Most images that are returned will be cropped down to your requested size (if you entered a size). Some, however, cannot easily be cropped at the moment. Those are delivered full-size, and you can crop them down separately if you want.
For more information on the data sets included in Firefly, see this list .
Firefly will NOT return ALL the images for your specified combination of dataset+band+position; it returns the most centered science image it can find out of the bands it can access. This is usually but not always actually going to be the most useful to you, depending on what you're trying to do. Some programs delivered PSFs, mosaics created with alternate algorithms, etc. To find all the data at IRSA for a given target, you have several options, but the most efficient might be to enter the desired position in the big search box on the IRSA home page (this accesses a tool called Data Discovery).

Much more detail about interacting with images can be found in the Visualization section.

Making 3-color Images

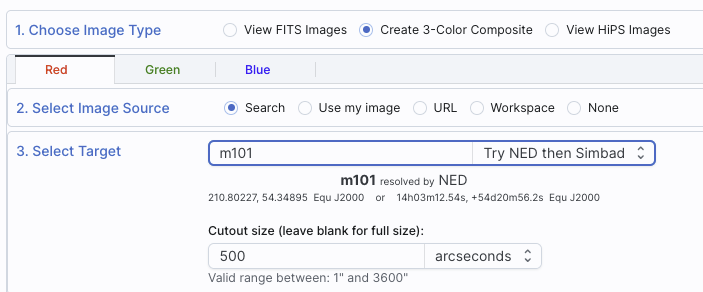

You can create 3-color images directly from the image search. Select "Create 3-Color Composite" from the top row of options. The rest of the window changes to look like the following:

By default, you can select the red plane first; you then populate that color plane with all the same choices as you would have for a single channel image (as above). To set the additional color planes, click on "green" and then "blue" to populate those planes accordingly.

It assumes that you must want the same position for all three color planes.

Select your options individually for each color plane (red, green, blue), and click 'Search' in the lower left. To exit the search window (i.e., cancel) without creating a new 3-color image, click on any other tab at the top, e.g., "Results" returns you to the results you have already loaded into the tool.

To change the color stretch of each color plane individually, click on the "Color Stretch" icon in the toolbox on the top of the images pane; see the Visualization section. Much more detail about interacting with images can be found in the Visualization section.

⚠ Tips and Troubleshooting

You load all three images at once, e.g., you do NOT pick red, click search, then go back and pick green, click search, then go back and pick blue, click search. Instead, click red and define what you want for that image, then go to green and do the same, then go to blue and do the same. Don't click "search" until you have specified all three bands.
The images will be downsampled to the resolution of the red image. If you, say, load an MSX image into the red plane, a WISE image into the green plane, and a 2MASS image into the blue plane, all of the images will have MSX-sized pixels. If you load a WISE image into the red and green planes, and a 2MASS image into the blue plane, the images will have WISE-sized pixels.

HiPS Images: General Information & Definitions

HiPS

stands for hierarchical progressive surveys, and these kinds of images are multi-resolution HEALPix

images (where HEALPix stands for Hierarchical Equal Area isoLatitude Pixelation). (Also see IVOA docs on HiPS

.) In practice, what this means is that you can interact with images of a very large chunk of sky, and as you zoom, the pixel size changes dynamically. HiPS images are fundamentally different than FITS images, and as such, what you can do with the HiPS images are different than what you can do with the FITS images.

The whole point of HiPS images is to provide on-demand resolution changes. Zoom out, and it loads large pixels. Zoom in, and it loads smaller pixels. HiPS images are designed to cover large areas of sky efficiently. If you need to visualize many degrees, this is the image type to use.

There are HiPS images from all over the world available via the web; the complete list of HiPS images available from the images search page includes (once the "IRSA Featured" checkbox is unchecked) many HiPS images from CDS .

HiPS images typically have the color and stretch set by the person who originally made them. The color table can be remapped within this tool. But, you cannot, in general, change the stretch of HiPS images with as much flexibility as you can with FITS images. This is why there may be multiple versions of some data sets in the list of HiPS images.

HiPS maps typically come with a Multi-Order Coverage map (MOC). A MOC is a format developed by the International Virtual Observatory Alliance to specify sky regions. In this context, a MOC tells you via a simple boolean yes/no, is there sky coverage from this data set in this region. You can overlay a MOC from one data set onto a completely different data set's HiPS image.

Searching for HiPS Images

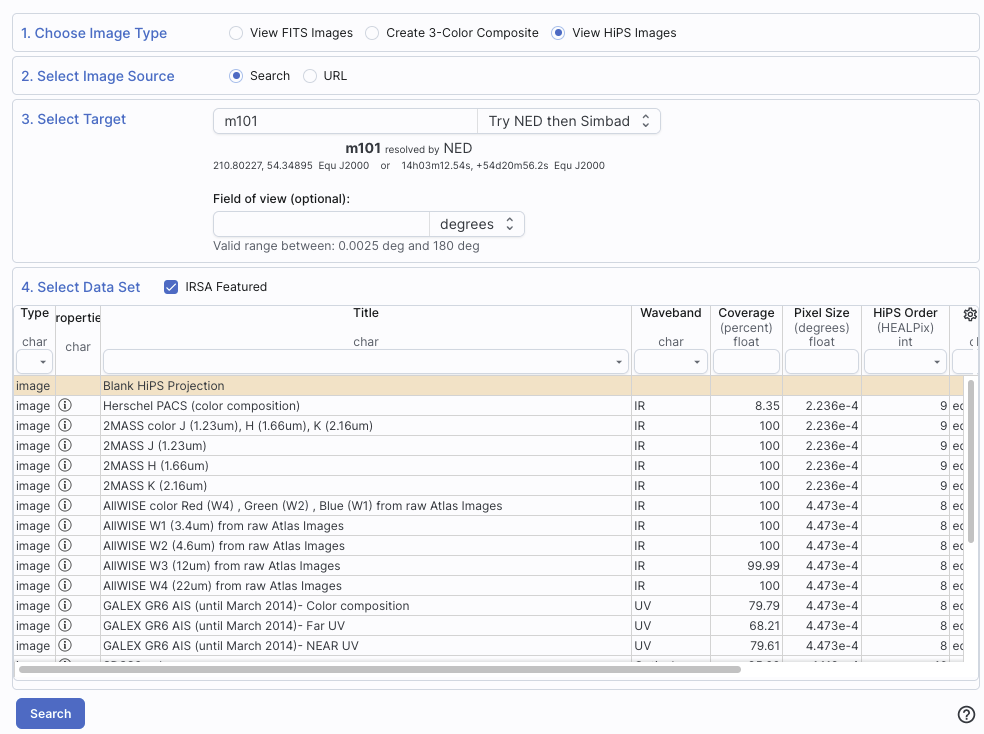

Select "View HiPS Images" from the top row of options. The rest of the window changes to look like the following:

1. Choose Image Type

Image type should be "View HiPS Images".

2. Select Image Source

Second, you tell it whether you want to search among the HiPS images available to this tool, or give it a URL for it to construct a search. Either option retains the next section.

3. Select Target

Third, give it a target; this works as for FITS images above.

Note that here, in the context of HiPS images, the field of view (FOV) here has different limits than FITS images; it can be no smaller than 0.0025 deg, and can be up to 180 degrees. If you leave this blank, it will simply load the entire HiPS image for you.

4. Select Data Set

Fourth, select a data set. By default, the list of possible choices is limited (via the checkbox at the top of the table) to "IRSA Featured" choices, meaning data that IRSA users are most likely to want. If you uncheck this box, you will have a much larger list of HiPS image choices (from CDS

) to pick from.

Column definitions. The table that appears when selecting a HiPS image has several columns:

Type - image (all that is available in this context)
Properties - links to more information for that image
Title - descriptive words for the HiPS image
Waveband - Approximate wavelength range
Coverage - Approximate sky coverage (100% or less) -- HiPS images often carry with them something referred to as "MOC", or multi-order coverage. This number gives an indication of the sky coverage of the data.
Pixel scale - At the highest order (zoomed in the most), this is the pixel size
HiPS Order - HiPS order, e.g., how deep you can zoom
Frame - coordinate sytem, e.g., equatorial, galactic, etc.
Release date - Date that HiPS image became available
Dataset IVOA ID - Unique (worldwide) identifier for the dataset

Search!

To actually initiate the search as specified, choose the "Search" button in the lower left.

⚠ Tips and Troubleshooting

The table of HiPS choices is itself a Firefly table, like all the other tables in this tool, so you can sort/filter/etc. to locate the image you want to load.
To learn more about any given image, click on the in the second column of the table. Another window will spawn with basic information about that HiPS image.
Note that color HiPS images are available and that the color stretch is set by the person making the HiPS image originally (so you can't really change it). You can change the color table (but not the stretch); see the Visualization section.
A blank HiPS image (basically a blank canvas) is also available from the list of HiPS images.

Adding New Images

Additional images can be added at any time by clicking on the blue "Images" tab near the top.

You can use the same target as before, or change the target. To exit the search window (i.e., cancel) without getting a new image, click on any other tab at the top, e.g., "Results" returns you to the results you have already loaded into the tool.

⚠ Tips and Troubleshooting

After you have done an initial search on a set of images, when you go back to the Images tab, those same images are still selected. If you just click 'search' again, you'll get a second copy of all of the images you initially selected. You must actually clear all the selections on the right to reset everything. The most efficient way to do this is by clicking the 'x' next to the selection summary at the top of this portion of the window -- the 'x' at the end of the "Filter By" line clears the filters on the left, and the 'x' at the end of the "Selection" line clears the selections.

Coverage Image

If you have launched Firefly by loading anything other than just images, it will also provide for you a "coverage image", which is basically a way for it (and you) to keep track of where you are working on the sky. This may be the most surprising when you are loading a catalog and therefore don't expect images to appear.

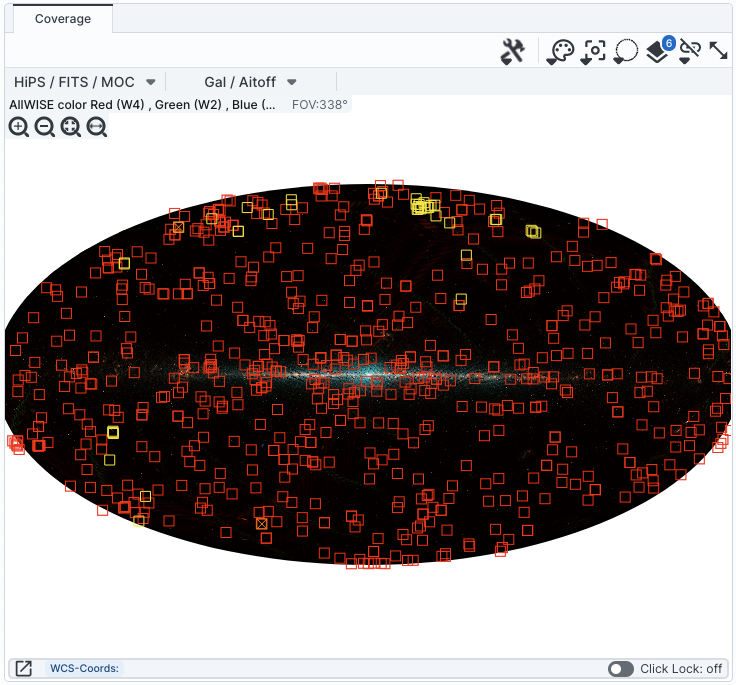

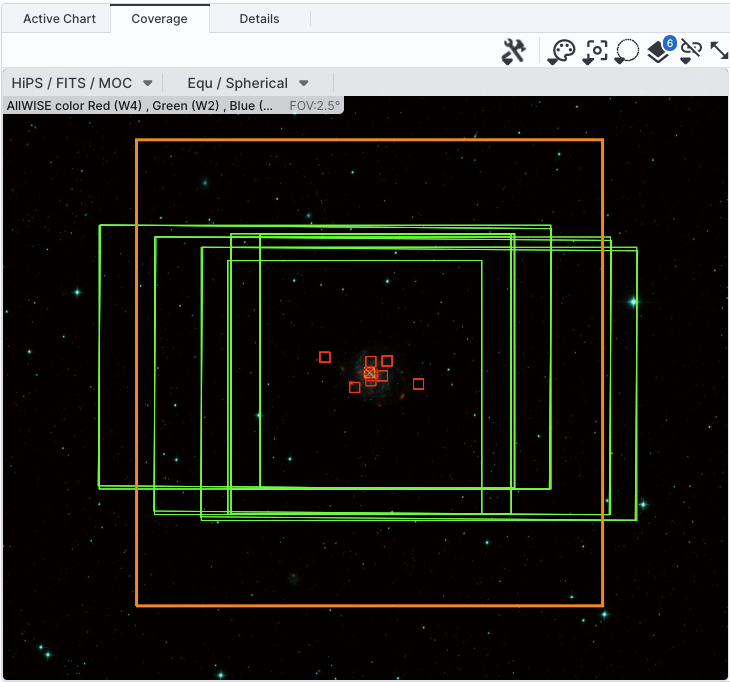

You may have a coverage image like this -- this is an example of a coverage image showing two different overlaid catalogs. Note that in this case, the catalogs cover the whole sky, so the HiPS image is displayed in HiPS/Aitoff projection to show the whole sky.
You can also have a coverage image like this, which shows a coverage image that has polygons demonstrating the coverage of each a list of loaded images (large polygons) and the locations of spectra (small squares). This case only has data over a relatively small region, so the HiPS image is zoomed in comparatively tightly on the relevant region.

In all cases, you can interact with the coverage image in pretty much exactly the same way as you would any other image loaded into this tool; see the the visualization chapter for much more about those tools.

The thing that makes a coverage image a little bit different, however, is that it can automatically adapt, even beyond what a HiPS image can intrinsically do. The next subsection includes more details about how it can automatically change to accomodate your needs and zoom level.

⚠ Tips and Troubleshooting:

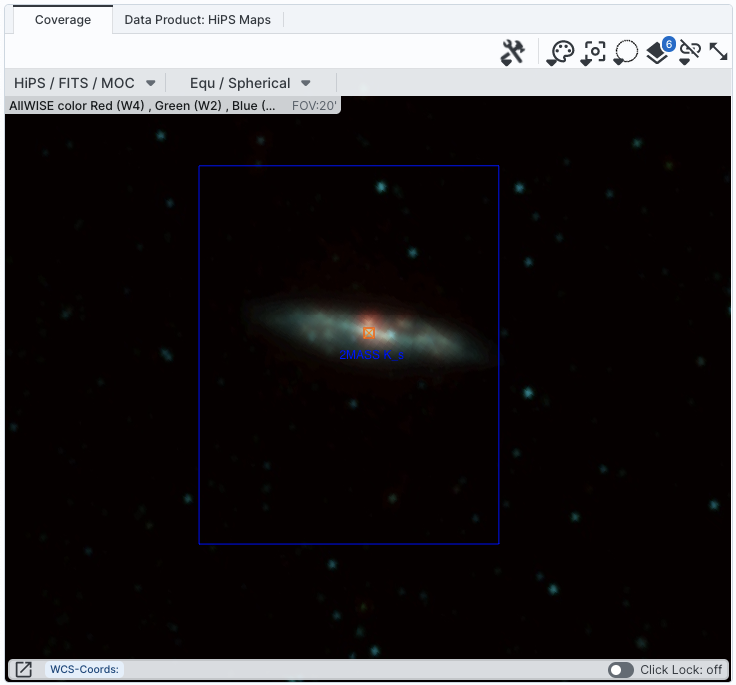

The coverage image will show polygons corresponding to the data products' coverage. However, if there are too many polygons to manage, the tool may fall back to showing just the positions of the data products it has retrieved. (Whether that is the central point or the lower left corner of the image depends on the data product itself.)

Upper Left HiPS menus

In the upper left of the coverage image, there are two drop-down menus.

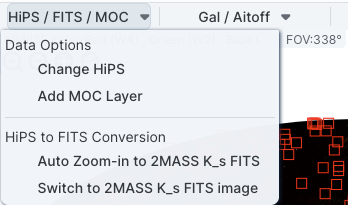

The first drop-down menu looks like this.

There are two sections here.

Under "Data Options", you can change what data are shown.

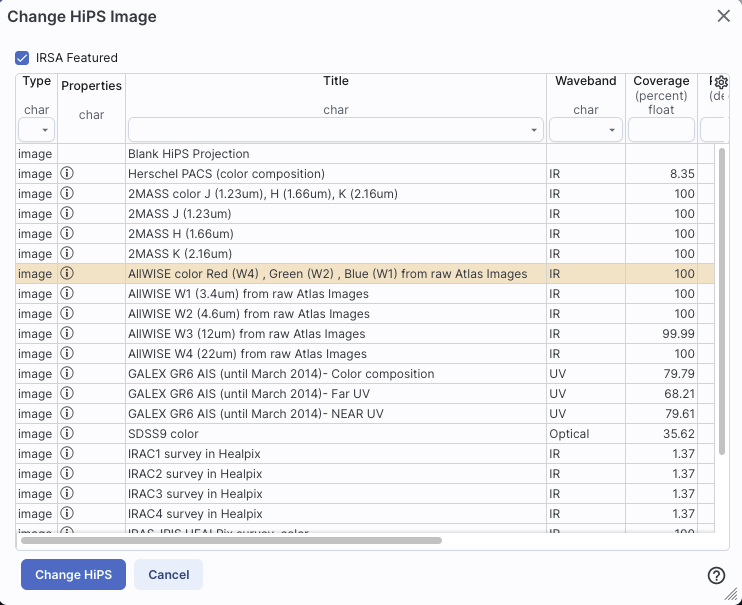

Change HiPS: Changing HiPS images

The choices made by any given creator of a HiPS image may result in any particular region being saturated or too faint to see. Color stretches are set by the creator of the HiPS map and cannot be changed; color tables can be somewhat changed by this tool, but that may be insufficient for your needs. If the HiPS map as shown does not suit your needs and you wish to change the HiPS image, click on the "HiPS/MOC" menu, and then click "Change HiPS". It brings up this pop-up, which resembles the HiPS search above:

Things to note:

To select a new image, click on the row corresponding to the new HiPS image you want, and click "Change HiPS" on the bottom left.
To cancel without selecting a new image, click "Cancel."
This is an interactive table, so all the filtering and column manipulation tools apply here too. You can filter down the columns to find the image you want to use.
To learn more about each HiPS map, click on the i with the circle in the second column. It will spawn another window with standardized information about the HiPS map.
By default, it shows HiPS maps corresponding to IRSA data collections. To see a more comprehensive list, unclick the box marked "IRSA Featured."

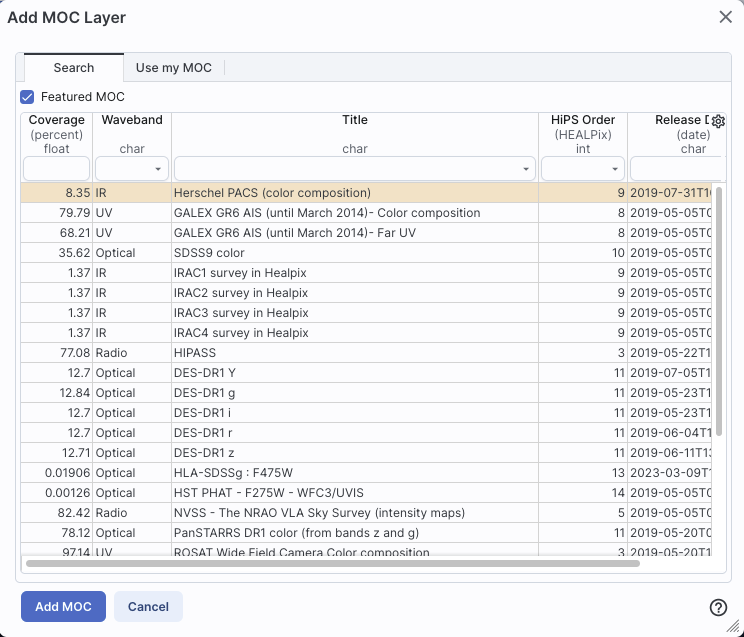

Add MOC Layer: Adding a MOC Overlay

It is often useful to see what other data are available. Looking at a Herschel/PACS far-IR HiPS map? Overlay a Chandra MOC to see what X-ray data might be available to go with your IR data. Click on the "HiPS/MOC" menu, and then click "Add MOC Layer." It brings up this pop-up:

Things to note:

Coverage (the first column) is the fraction of the sky covered by that MOC.
To select a new MOC, click on the row corresponding to the new MOC you want, and click "Add MOC" on the bottom left.
To cancel without selecting a new image, click "Cancel."
This is an interactive table, so all the filtering and column manipulation tools apply here too. You can filter down the columns to find the image you want to use.
By default, it shows MOCs likely to be most interesting for IRSA users. To see a more comprehensive list, unclick the box at the top left.
If you have your own MOC FITS file, you may upload it via the "Use my MOC" tab on the top center.
If you try to upload a MOC FITS file via the upload tab, it will behave as if you have uploaded it here.

Under "HiPS to FITS Conversion", you can control whether the viewer will automatically toggle between image types as needed.

By default, the coverage image is most likely a HiPS image. FITS images are best for small regions of the sky, and HiPS images are best for large regions of sky.

Auto Zoom-in to 2MASS K_s FITS:: If you select this, then when you zoom in very close to a target, it will automatically convert to a FITS image when you get close enough.
Switch to 2MASS K_s FITS image:: If you select this, then it will jump directly to a FITS image centered on the currently selected target.

Note that if you swap between HiPS and FITS and back again, it will include a region on the HiPS image that is the footprint of the FITS images you had just loaded. A label appears at the center of that footprint, which may be disconcerting if you are not zoomed out enough to see the region itself. Here is an example, zoomed out so it is more clear what is going on:

The second drop-down menu looks like this.

There are three sections in this menu.

Orientation: Under "Orientation", you can control whether the coordinates are in Galactic or Equatorial J2000 (RA/Dec). This can be used in conjunction with the image readout and/or the coordinate layer button (both described in the visualization section)
Center Galactic: If you select "Center Galactic", the HiPS image slews to put Galactic North up, the Galactic Center in the center of the field of view, and the Galactic Plane horizontally across your field of view. This is useful if you have been zooming or scrolling around to look at individual sources and need to bring it back to a familiar orientation quickly.
Projection: Under "Projection", you can control whether the display is in Spherical or Aitoff coordinates. Aitoff projection works better for all-sky displays.
